Download Documents for Projector FP-ZUH12000

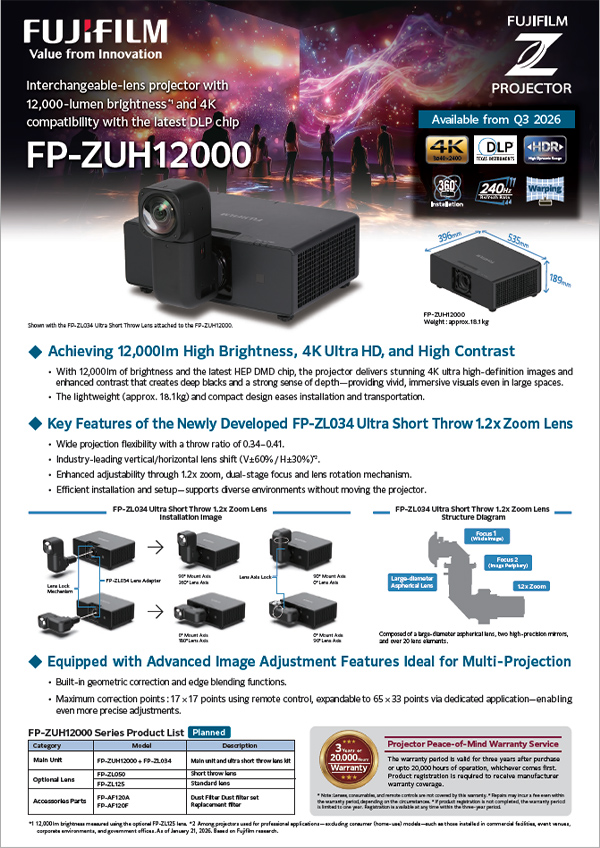

FP‑ZUH12000 Leaflet

This leaflet provides an overview and specifications of the FP‑ZUH12000.

Download [PDF]
ZUH12000 leaflet. Includes product features and specifications.
Drawings and CAD
Lens Rotation Shape PDF 2D CAD (DWG file) 3D CAD (STEP / IGES file)
Mount Lens
FP-ZL034 0° 90°
Upward-facing image of the ZUH12000 (with UST lens attached)
ZUH12000_ZL034_M0L90.pdf
ZUH12000_ZL034_M0L90 [DWG]
Coming soon
0° 180°
Front-facing image of the ZUH12000 (with UST lens attached)
ZUH12000_ZL034_M0L180.pdf
ZUH12000_ZL034_M0L180 [DWG]
Coming soon
90° 0°
Rear-facing image of the ZUH12000 (with UST lens attached)
ZUH12000_ZL034_M90L0.pdf
ZUH12000_ZL034_M90L0 [DWG]
Coming soon
90° 90°
Left-side image of the ZUH12000 (with UST lens attached)
 Coming soon Coming soon Coming soon
90° 180°
Front-facing image of the ZUH12000 (with UST lens attached)
ZUH12000_ZL034_M90L180.pdf
ZUH12000_ZL034_M90L180 [DWG]
Coming soon
90° 270°
Right-side image of the ZUH12000 (with UST lens attached)
 Coming soon Coming soon Coming soon
FP-ZL050 - -
Front-facing image of the ZUH12000 (with standard lens attached)
ZUH12000_ZL050.pdf
ZUH12000_ZL050 [DWG]
Coming soon
FP-ZL125 - -
Front-facing image of the ZUH12000 (with short-throw lens attached)
ZUH12000_ZL125.pdf
ZUH12000_ZL125 [DWG]
Coming soon
